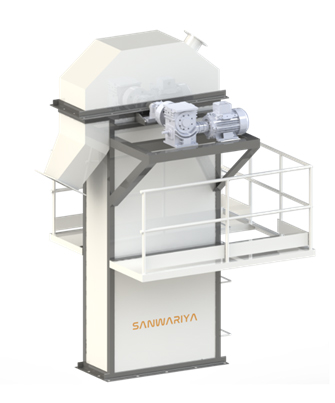

Bucket Elevator
Bucket Elevator
INTRODUCTION
SANWARIYA bucket elevator by snawariya provides controlled vertical transport of bulk materials. In an optionally enclosed, dust-tight construction, the system conveys dry, fine, or granular products such as grain, sand, minerals, powders, and granulates. Plastic or steel buckets are mounted on a conveyor belt or chain.
Specification:
| S.NO. | NAME | MOTOR | CAPACITY | BUCKET SIZE IN MM | SPEED M/SEC |
| 1 | BE-910X380 | 3HP/10HP/1440 RPM | 5-10 TPH | 230X150X127 | 1M/SEC |
| 2 | BE-1010X480 | 5HP/15HP/1440 RPM | 10-15 TPH | 250X150X127 | 1.2M/SEC |
| 2 | BE-1410X520 | 15HP30HP/1440 RPM | 20TO30 TPH | 300X200X180 | 1.5M/SEC |
| THE ABOVE CONVEYING CAPACITY IS CALCULATED ON IDEAL CONDITION. IT MAY VARY ± 10 % , AND CAPACITY ALSO DEPENDS UPON FEEDING SIZE, MATERIAL DENSITY AND FEEDING AMOUNT. | |||||
SCREW CONVYOR
INTRODUCTION
SANWARIYA designs and manufactures various types of screw conveyor to efficiently convey different types of material.
MOC – (S.S. And M.S.)
Specification:
| S.NO. | NAME | MOTOR | CAPACITY | SIZE | SPEED M/SEC |
| 1 | TSC-168 | 1 TO 7.5/HP | 10M3-TPH | DIA-168MM | 1-2M/SEC |
| 2 | TSC-200 | 2 TO 15/HP | 21M3-TPH | DIA-200MM | 1-2M/SEC |
| 3 | TSC-250 | 40M3-TPH | DIA-250MM | 1-2M/SEC | |
| THE ABOVE CONVEYING CAPACITY IS CALCULATED ON IDEAL CONDITION. IT MAY VARY ± 10 % , AND CAPACITY ALSO DEPENDS UPON FEEDING SIZE, MATERIAL DENSITY AND FEEDING AMOUNT. | |||||

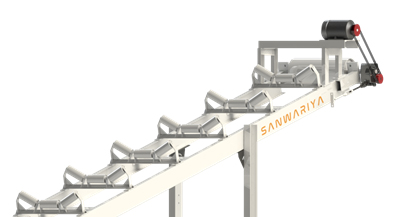

BELT CONVEYOR
INTRODUCTION
SANWARIYA belt conveyor system typically includes a head pulley, tail pulley, idler rollers, the conveyor belt, and the frame. Each component is engineered to support efficient and reliable material transport.
Specification:
| S.NO. | NAME | MOTOR | CAPACITY | BELT – SIZE | SPEED M/SEC |
| 1 | BC-400 | 3HP/7.5 HP | 50 TPH | 400 MM | 1-2M/SEC |
| 2 | BC-600 | 3HP/ 15 HP | 100TPH | 600 MM | 1-2M/SEC |
| 3 | BC-100 | 5HP/20 HP | 200TPH | 100 MM | 1-2M/SEC |
| THE ABOVE CONVEYING CAPACITY IS CALCULATED ON IDEAL CONDITION. IT MAY VARY ± 10 % , AND CAPACITY ALSO DEPENDS UPON FEEDING SIZE, MATERIAL DENSITY AND FEEDING AMOUNT. | |||||
